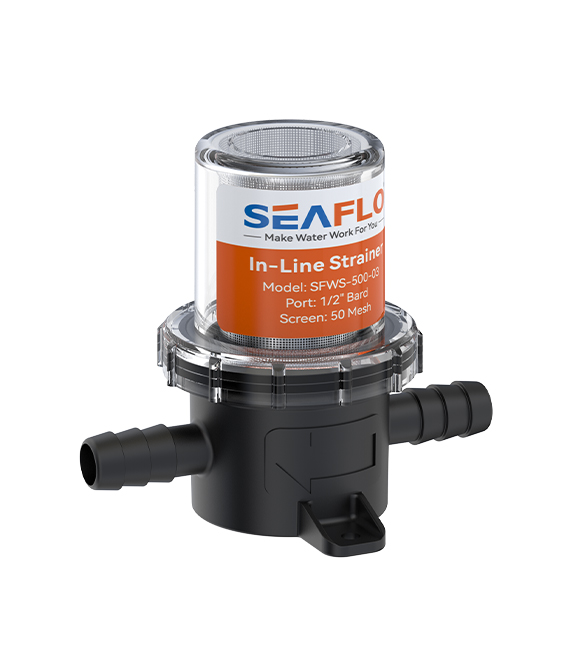

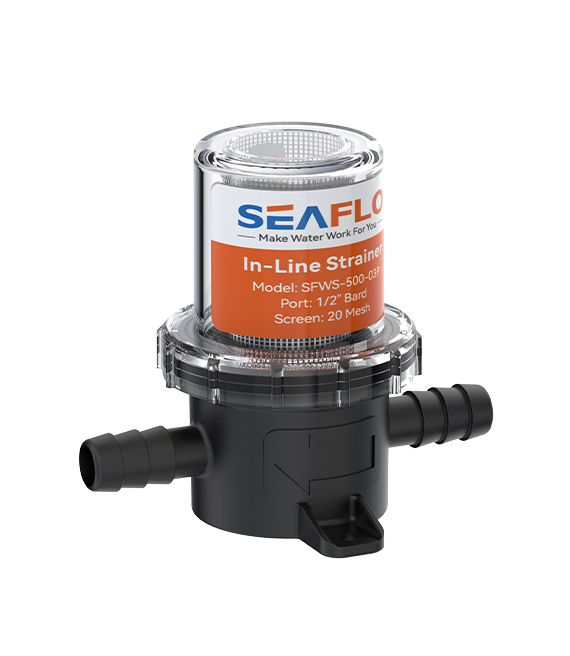

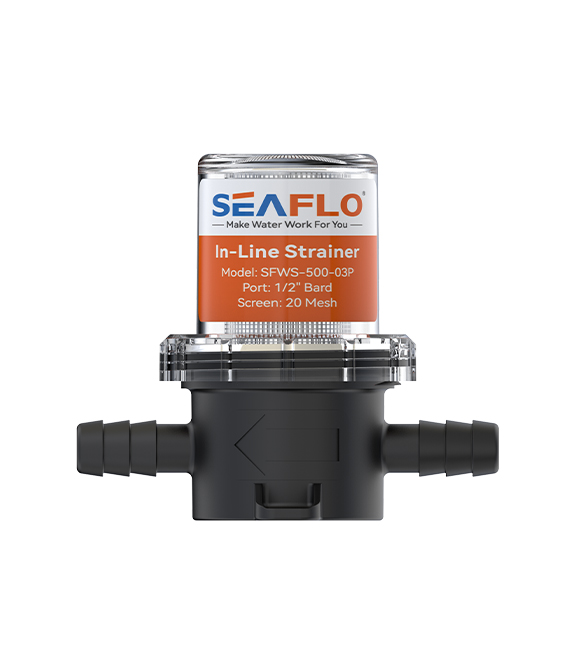

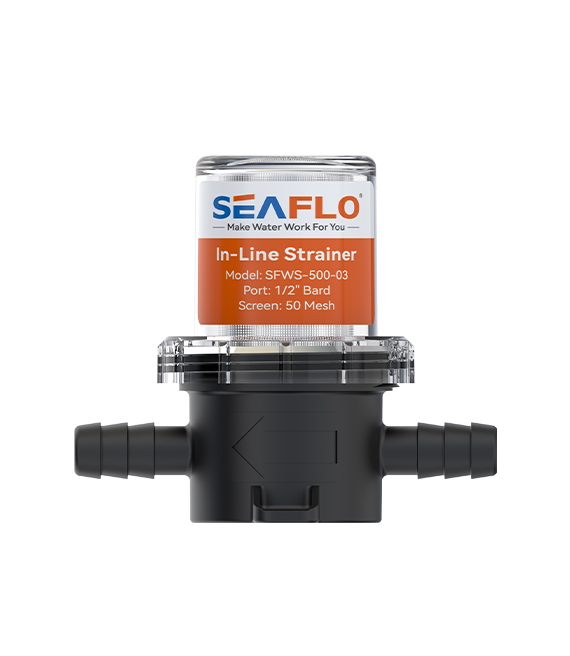

Water strainer, pump filter
Model：SFWS-500-03P/SFWS-500-03
Filter：20 mesh / 50 mesh
Ports：1/2" Barb
03 series in-line strainer features a barb connector design, which can be easily installed in any position prior to the pump intake. It effectively prevents dirt and particles entering the pump intake, extending its service life and reduce repairs.
FEATURES & BENEFITS
MORE FEATURES & BENEFITS

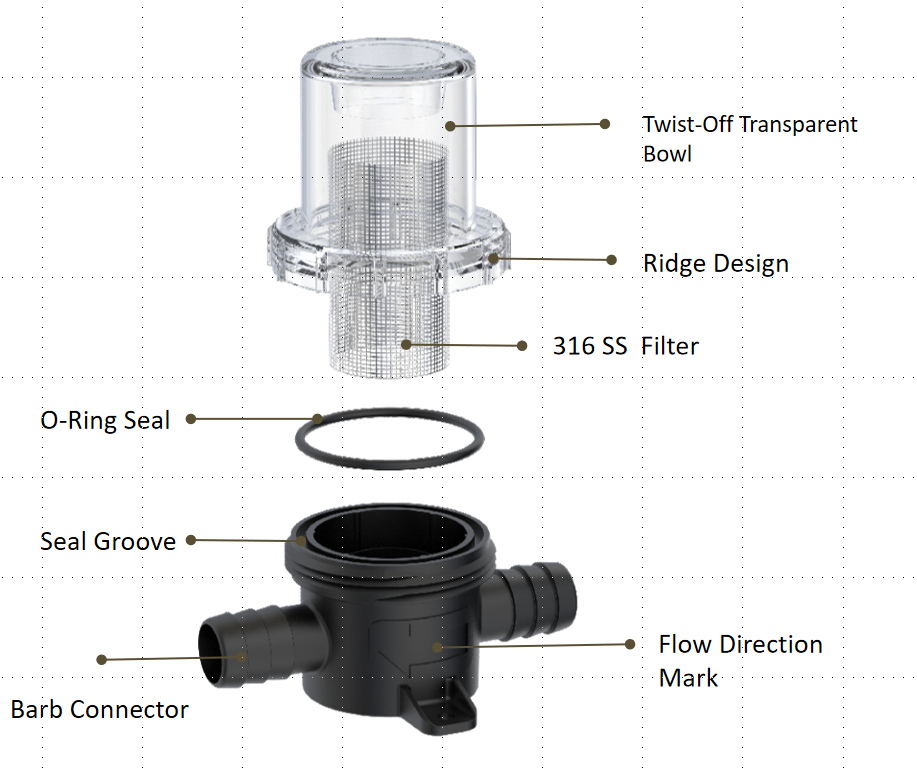

Stainless steel filter collects the crud and prevents pump from blockage. 20/50 mesh available for different needs.
Bard connector design allows easy installation in any position, just insert the strainer to the intake hose.
Transparent bowl allows direct inspection for whether the filter needs cleaning.
Easy cleaning of the twist-off bowl and removable filter.
Properly place the seal in the groove to ensure no leaks.
Direction arrow helps to recognize the flow direction effortlessly.

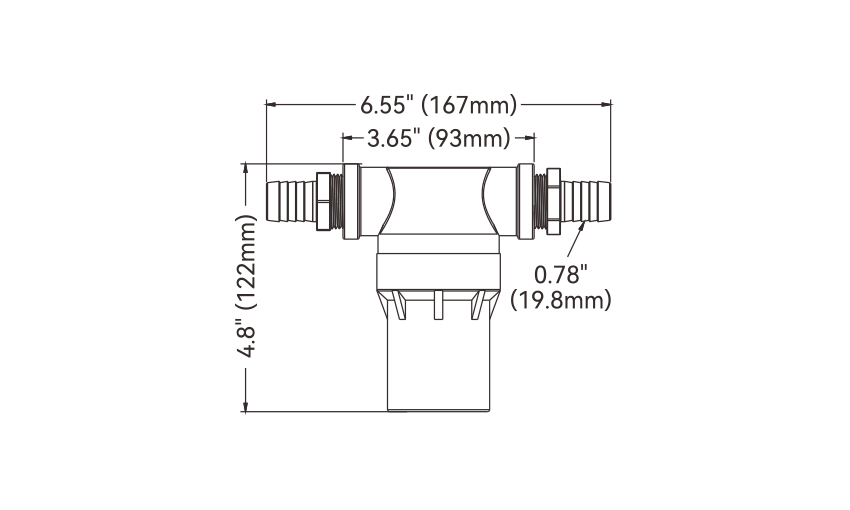

DIMENSIONS DRAWING

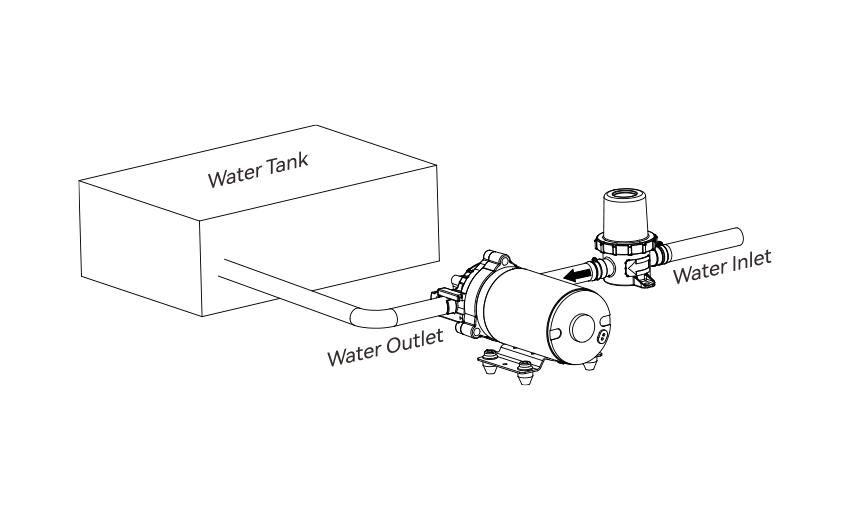

INSTALLATION DRAWING
STANDARD CONFIGURATIONS
Model | Filter Specifications | Ports |
| SFWS-500-03P | 20 mesh | 1/2" Barb |
| SFWS-500-03 | 50 mesh | 1/2" Barb |
