Model：SFTV3-0625-01、SFTV3-0750-01、SFTV3-1000-01、SFTV3-1125-01
Size：5/8"、3/4"、1"、1-1/8"
Color：Black
It is made from high quality, durable materials to withstand harsh marine conditions and is compatible with a wide range of hoses commonly used in the marine environment, ensuring that gases and pressures can escape, which is essential for the safe operation of a boat's systems

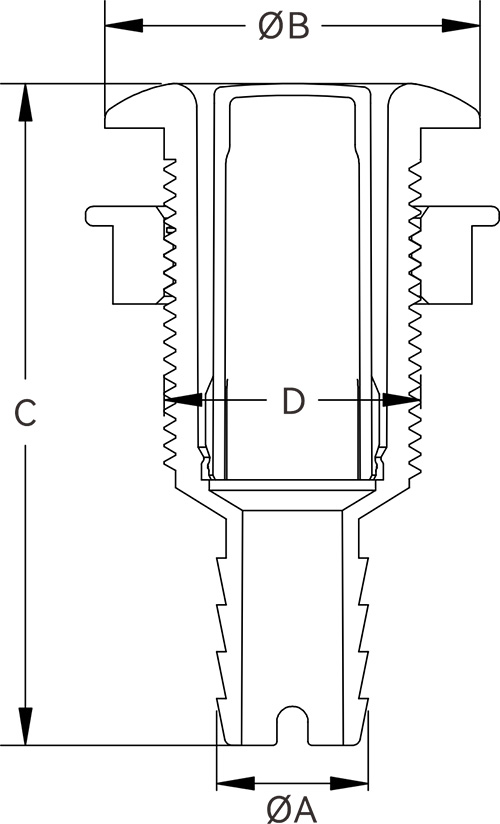

DIMENSIONS DRAWING
| Model | Size | A (mm） | B（mm） | C（mm） | D (mm) | Color | Material |
SFTV3-0625-01 | 5/8” | 16 | 48 | 85 | 32.8 | Black | Body: Nylon+GF Cover: 316 Stainless Steel |
SFTV3-0750-01 | 3/4” | 19.4 | 48 | 85 | 32.8 | Black | |
SFTV3-1000-01 | 1” | 25.8 | 48 | 85 | 32.8 | Black | |
SFTV3-1125-01 | 1-1/8" | 29 | 48 | 85 | 32.8 | Black |
