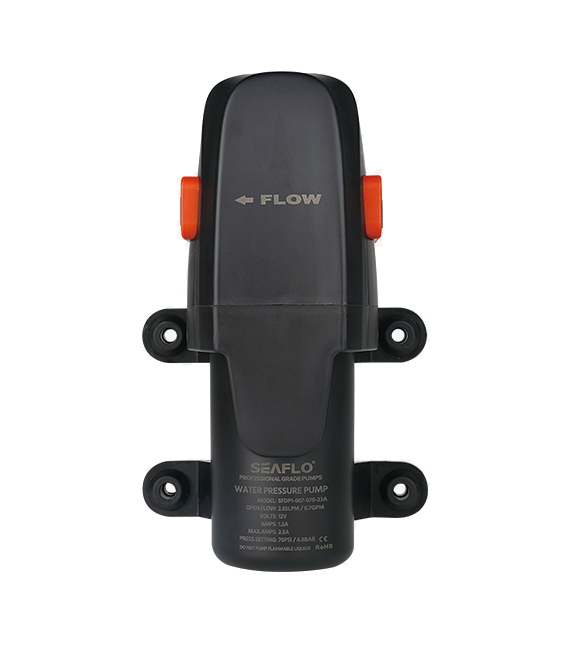

23A Series Automatic Demand Diaphragm Pump

Automatic Diaphragm Pump,mini water pump,12v water pump

Voltage:12V/24V

Open Flow:0.5-1.5GPM / 1.9-5.6LPM

Shut-off Pressure:40-70PSI / 2.8-4.8BAR

Priming Capabilities:5 feet (1.5 m) suction lift

Max Recommended Temperature:140° F (60° C)Max.

Material:EPDM(Valves) / Santoprene(Diaphragm)

Ports:5/8" quick attach

SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade.

contact us
collect
SHARE THIS PRODUCT:

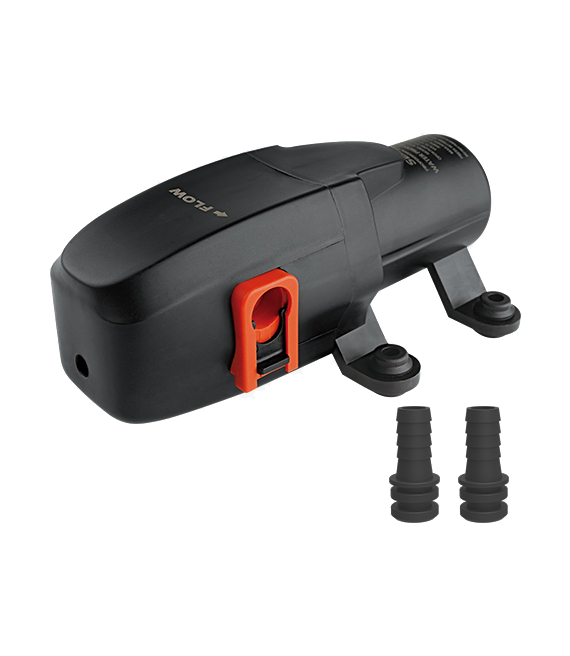

  • Standard accessories

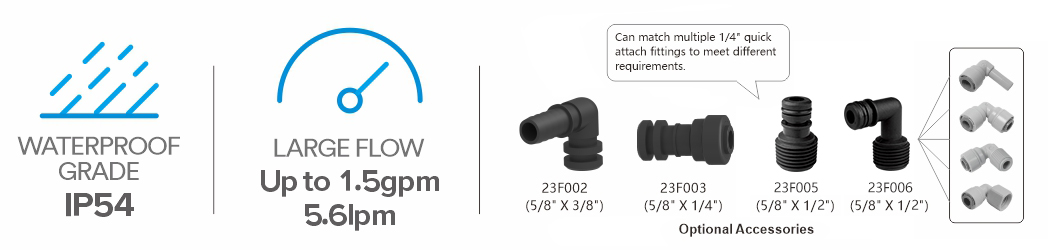

  • Optional Accessories

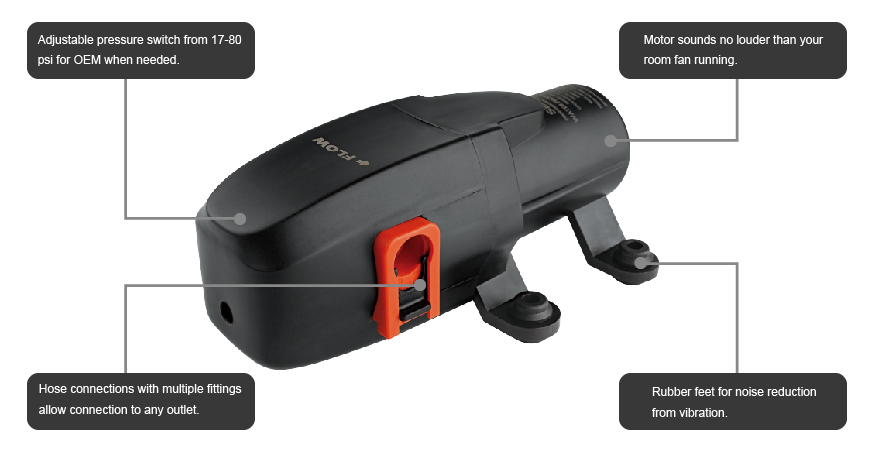

MORE FEATURES & BENEFITS

•  Open flow up to 1.5gpm/5.6lpm

•  Dry run capability

•  Max Self-priming up to 5 feet/1.5m

•  Waterproof grade IP54 with extra cover

•  On-demand long life pressure switch

•  Configurable reflux function

•  Adapt to a variety of scenarios

•  Multiple connector options

•  By pass technology reduces cycling

•  Ignition protected, CE, RoHS

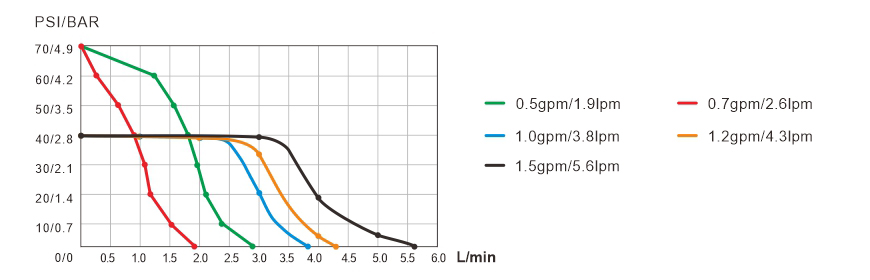

STANDARD PUMP CONFIGURATIONS

Model

Voltage

Open Flow
(GPM/LPM)

Max Draw

Shut-off Pressure
(PSI/BAR)

SFDP1-005-070-23A
12V
0.5/1.91.8A70/4.8
SFDP2-005-070-23A
24V
0.5/1.91.0A70/4.8
SFDP1-007-070-23A
12V
0.7/2.62.5A70/4.8
SFDP2-007-070-23A
24V
0.7/2.61.2A70/4.8
SFDP1-010-040-23A
12V
1.0/3.83.8A40/2.8
SFDP2-010-040-23A
24V
1.0/3.82.0A40/2.8
SFDP1-012-040-23A
12V
1.2/4.34.2A40/2.8
SFDP2-012-040-23A
24V
1.2/4.32.2A40/2.8
SFDP1-015-040-23A
12V
1.5/5.64.5A40/2.8
SFDP2-015-040-23A
24V
1.5/5.62.5A40/2.8







SHIPPING INFORMATION

Unit  Weight

1.32 lbs0.6 kg

Selling Unit Size (L x W x H)

7.09"x 4.13 "x 2.76"

18.0 x 10.5 x 7 cm

Selling Unit Weight

1.54 lbs0.7 kg

Master Carton Size (L x W x H)

15.16"x 13.19 "x 14.96"

38.5 x 33.5 x 38 cm

Master Carton Qty

30 pcs

Master Carton Weight

45.19 lbs20.5 kg

Master Carton Volume

0.049 m³
