oil gear pump,Impeller Gear Pump, oil change pump,
Voltage:12V / 24V
Open Flow:12.0LPM / 3.2GPM
Ports:3/8" FNPT
Impeller Material:Copper

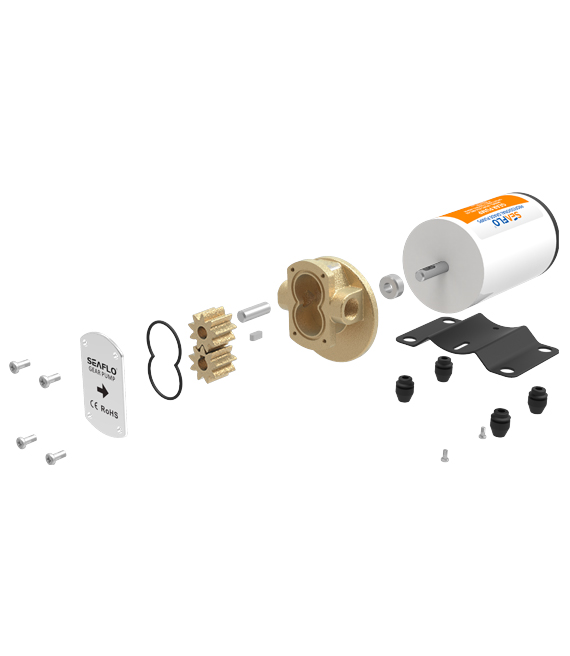

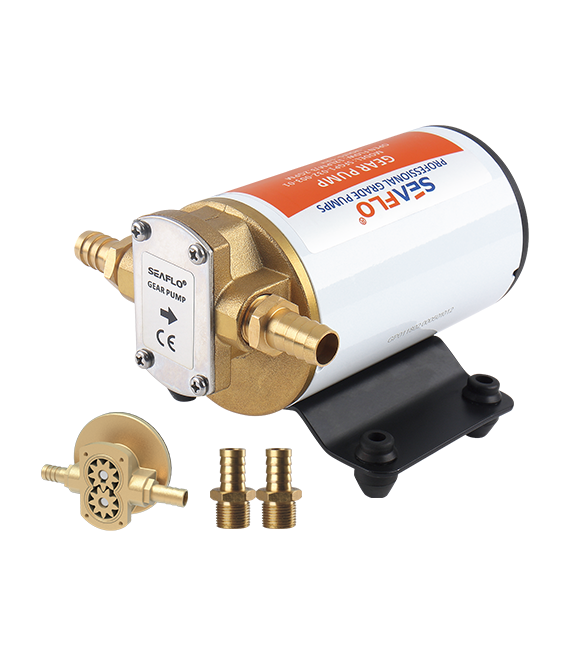

SEAFLO gear pumps are a rugged pumps made for transferring oil and other high viscosity liquids. Perfect for oil changes or liquid transfer, these pumps come in both 12v and 24v models. They are capable of operation in either direction. We use robust motors, rugged metal pump head and gears. Our tough design provides performance that you can rely on for years.
MORE FEATURES & BENEFITS
• Perfect for pumping oil
• Metal pump head
• Metal gears
• Sealed Motor Design
• Thermally Protected Motor
• Self-priming
STANDARD PUMP CONFIGURATIONS

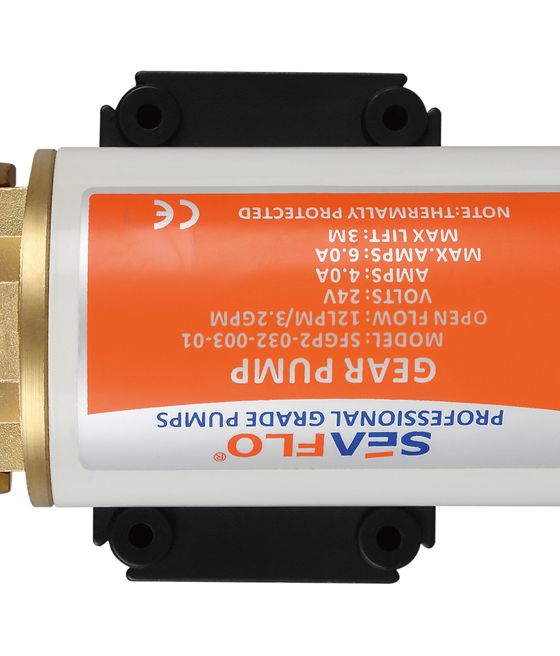

Model | Voltage | Max Draw(A) |
SFGP1-032-003-01 | 12V | 10.0 |
SFGP2-032-003-01 | 24V | 6.0 |
SHIPPING INFORMATION
Unit Weight | 5.29 lbs (2.4 kg) |
Selling Unit Size (L x W x H) | 7.68" x 5.12" x 4.25 " (19.5 x 13 x 10.8 cm) |
Selling Unit Weight | 5.75 lbs (2.61 kg) |
Master Carton Size (L x W x H) | 21.26" x 8.07" x 10.24" (54 x 20.5 x 26 cm) |
Master Carton Qty | 8 pcs |
Master Carton Weight | 44.09 lbs(20 kg) |
Master Carton Volume | 0.029 m³ |
