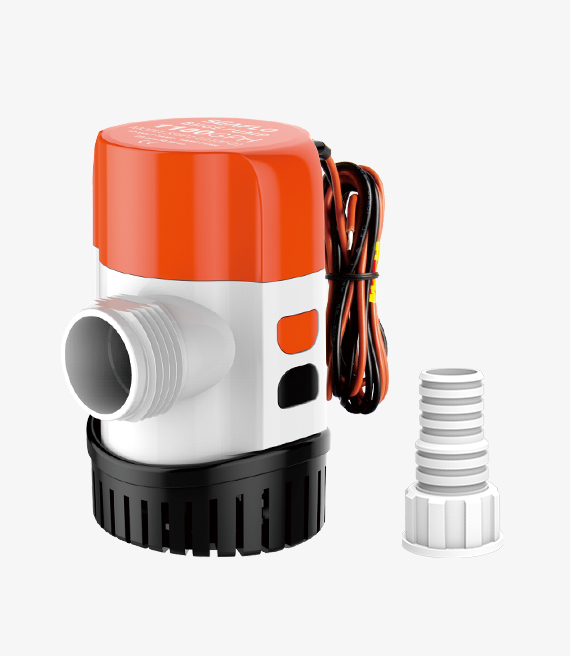

13B SERIES 1100GPH Electronic Sensing Automatic Bilge Pump –New Design

Automatic Bilge Pump,12v bilge pump,auto bilge pump

Voltage:12V / 24V

Flow Rate:1100 GPH

Outlet Dia:1" (25mm) 1 1/8" (29mm)

Application Scenarios:Marine

Motor:Cartridge Pump Replacement Motors(sold separately)

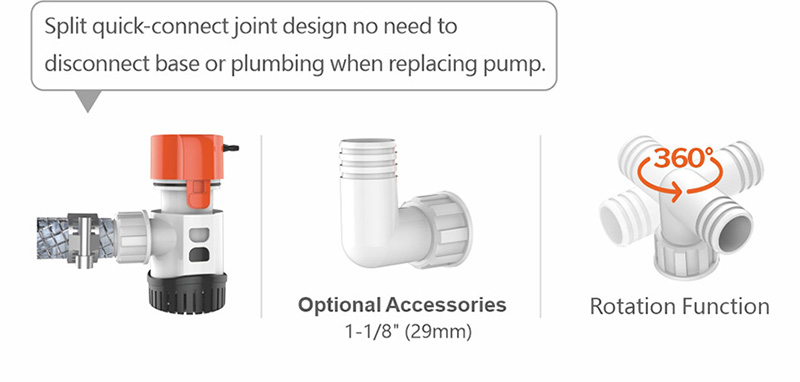

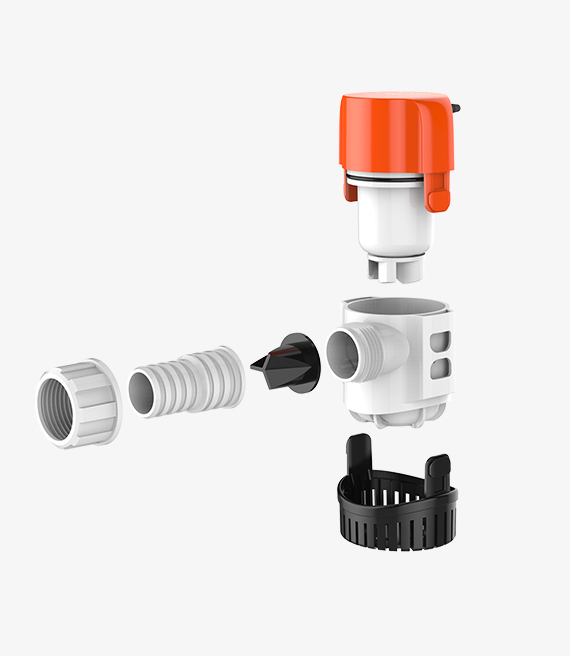

SEAFLO latest automatic 600GPH, 800GPH, 1100GPH bilge pumps offer water evacuation without extra float switch needed. SEAFLO electronic sensing series bilge pumps turn the pump impeller every 2-1/2 minutes for approximately 0.5 second. If water is present, the pump will sense resistance and will continue to run until all water is removed. This system is a compact way of constantly sensing for water presence. New innovative split quick-connect joint design removes and installs in seconds! Change pump never been so easy. No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. Just replace the motor that is all. Include Anti-Airlock protection and exclusive moisture tight seals, marine grade blocked wiring. Our larger impeller design and more robust motor allow us to outperform our competitors. Pumps offer a choice of straight or 90 degree ports to suit your installation.

contact us
collect
SHARE THIS PRODUCT:
  • Standard accessories
  • Optional Accessories

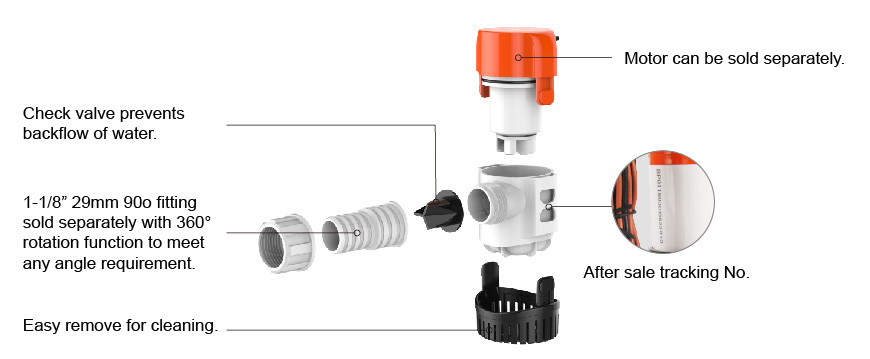

13A-FEATURES & BENEFITS.jpg

MORE FEATURES & BENEFITS

•  Compact automatic pump-no float switch needed

•  Check for water every 2.5 minutes, Runs for a half second

•  CE, RoHS, ISO 8846, ISO8849 standards

•  Submersible and ignition protected

•  High efficiency, low amp motor, quiet operation

•  Stainless-steel motor shaft

•  Vented impeller housing to prevent the pump from becoming arilocked

•  Marine grade silicon blocked, tin coated wiring

•  Includes check valve to prevent water back flow

•  Include removable discharge straight fitting

•  Motor can be sold separately

•  Exclusive moisture tight seals

•  2 Year Warranty

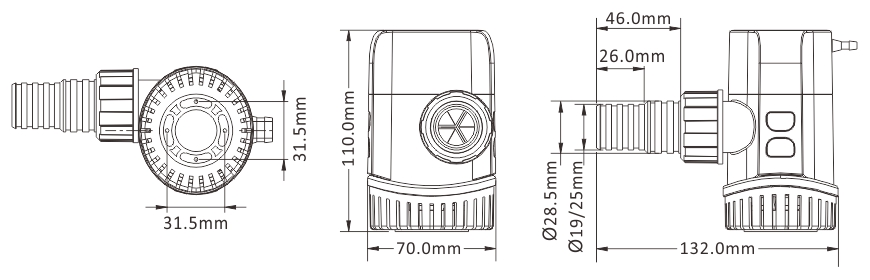

13B SERIES 600 800 1100GPH.jpg

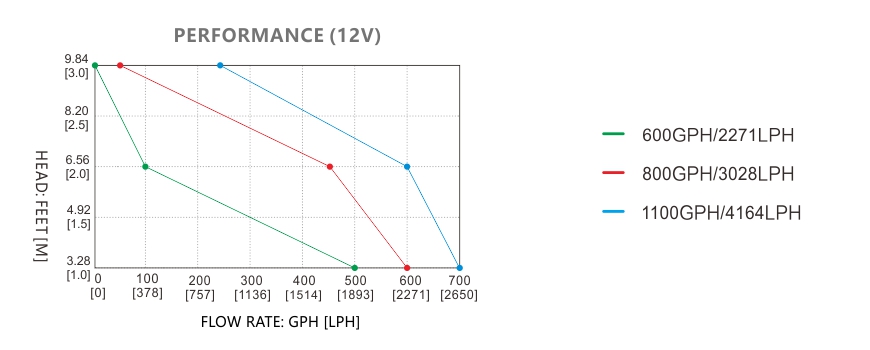

STANDARD PUMP CONFIGURATIONS

Model

Motor Model

Flow rate

Volts

Current

Head

SFBP1-G1100-13B

SFMA1-G1100-13B

1100GPH

12V

4.0A

4.0m/12.0'

SFBP2-G1100-13B

SFMA2-G1100-13B

1100GPH

24V

2.5A

4.0m/12.0'









SHIPPING INFORMATION

Unit Weight


Selling Unit Size (L x W x H)


Selling Unit Weight


Master Carton Size (L x W x H)

( 20.08" x 15.75" x 10.55")

51 x 40 x 26.8 cm

Master Carton Qty

40 pcs

Master Carton Weight

41.89 lbs (19 kg)

Master Carton Volume

0.055 m³
