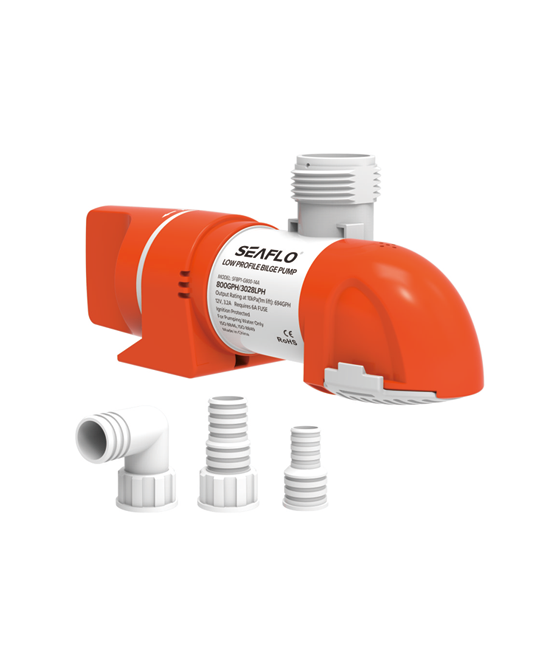

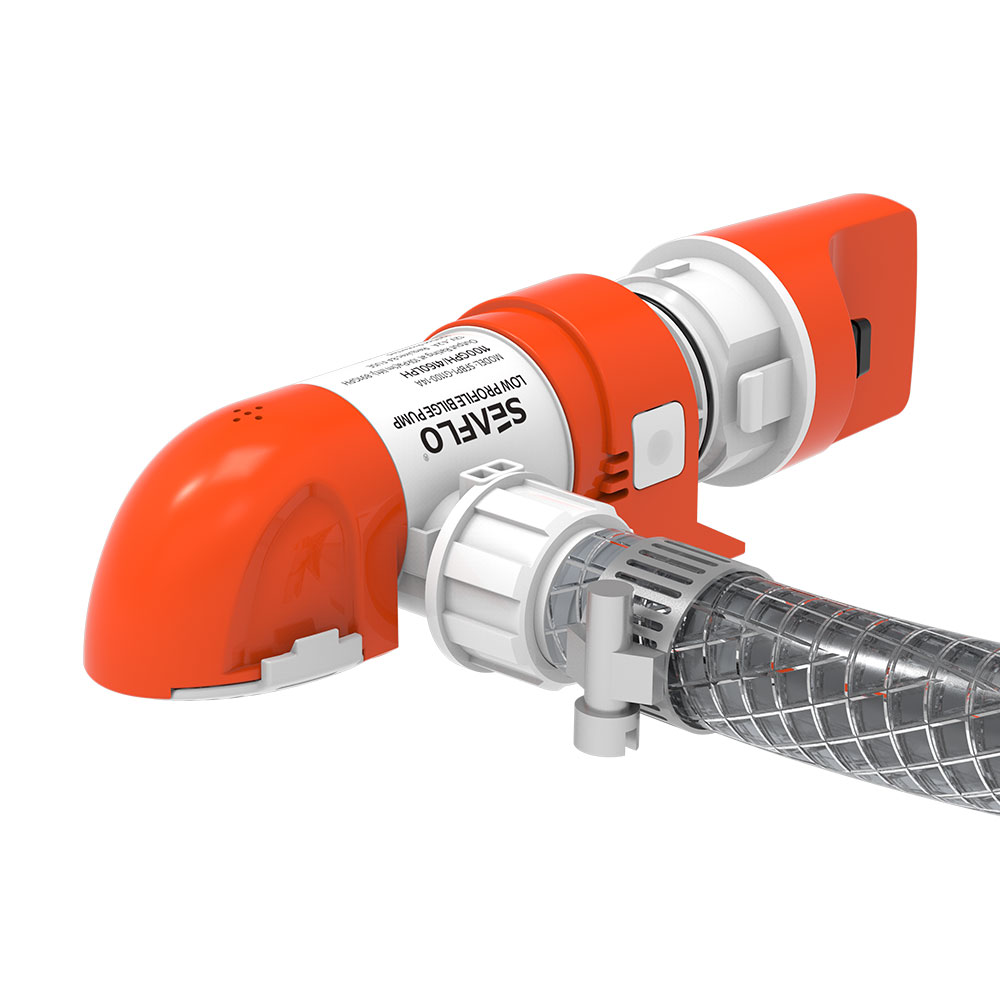

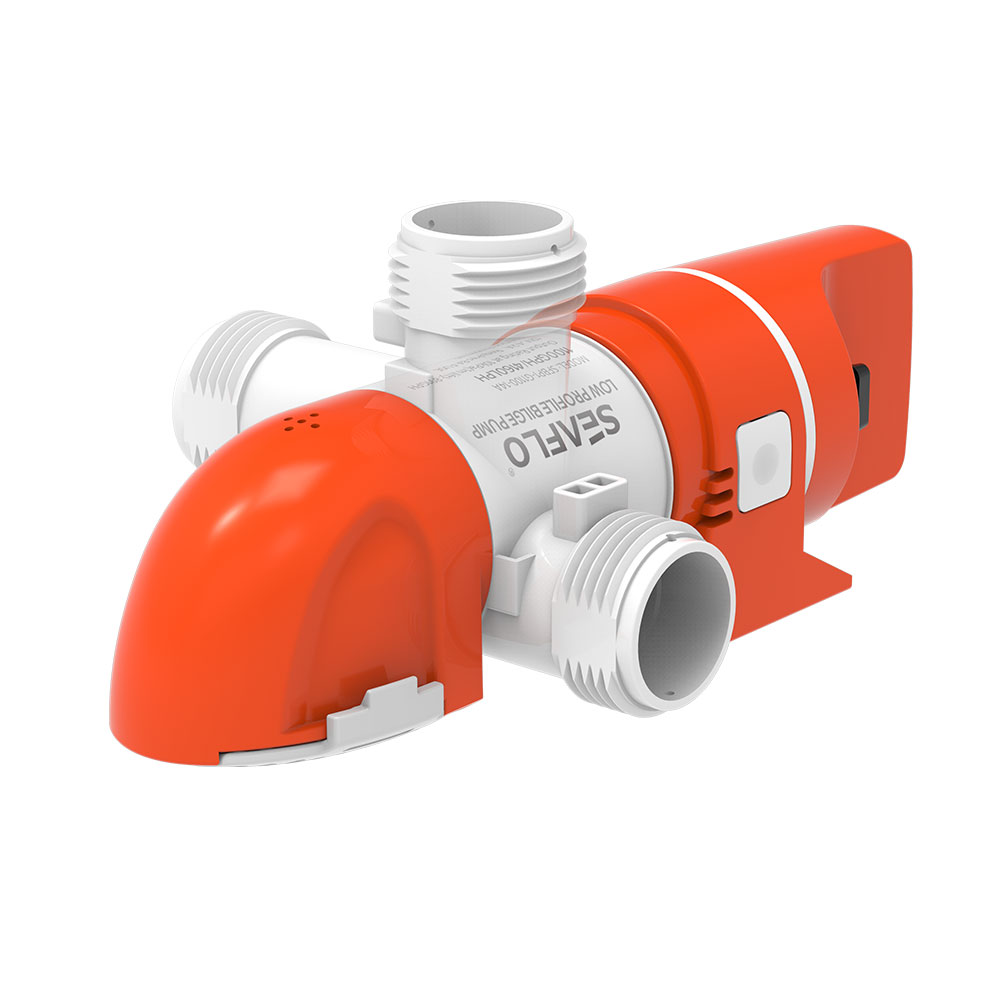

14A Series Narrow Low Profile Water Level Sensing Automatic Bilge Pumps

Submersible Pump,12v bilge pump,boat bilge pump

Voltage:12V / 24V

Flow Rate:800/1100 GPH

Outlet Dia:3/4" (19mm) 1" (25mm) 1-1/8" (29mm)

Application Scenarios:Marine

Motor:Cartridge Pump Replacement Motors(sold separately)

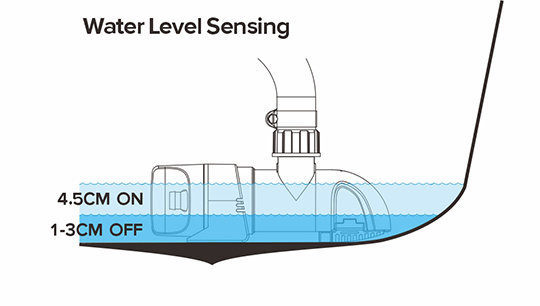

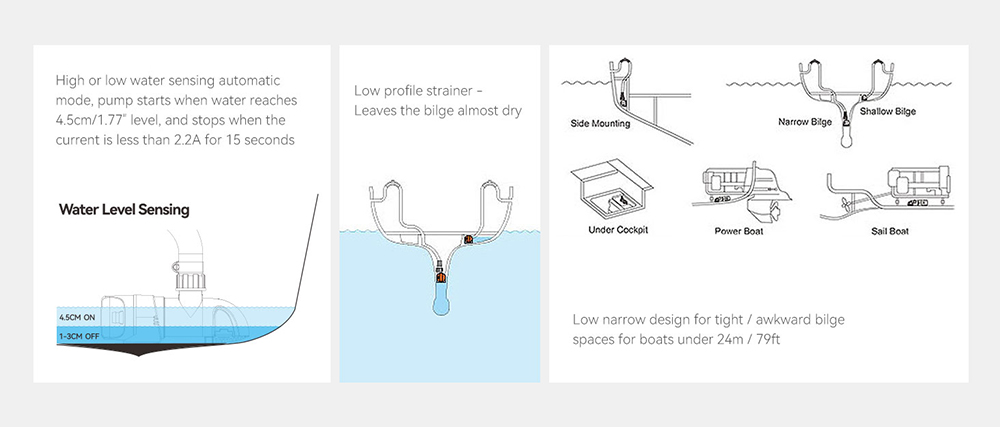

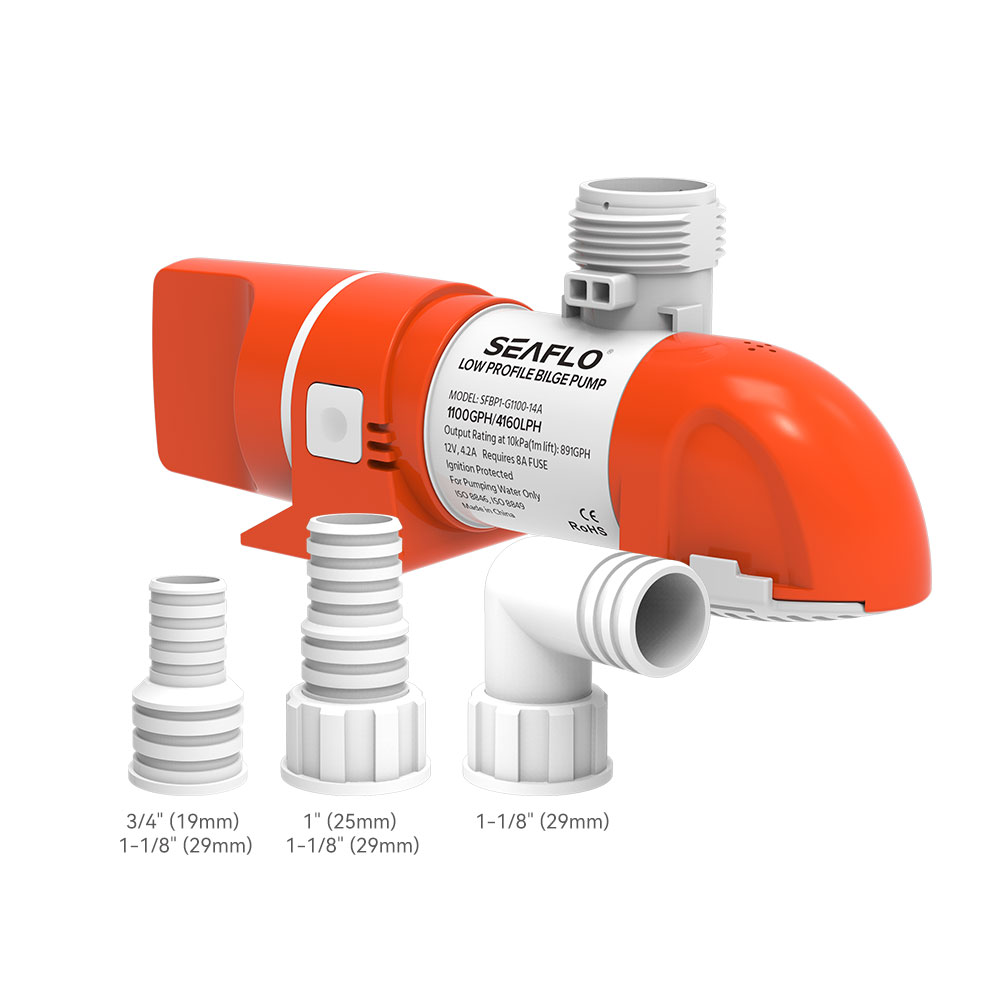

Our best drain down levels ever as low as 10mm or 1/3’’. SEAFLO Narrow, Low profile bilge pump fits deep down in small/awkward bilge spaces where other pumps won't fit. Compact, Horizontal or vertical mounting, with 360 Degree Discharge for easy remove and replace and leaves the bilge almost dry. Port Type 3/4" (19mm), 1" (25mm), 1 1/8" (29mm) Straight Hose barb or 3/4"(19mm) 90o Elbow together with pumps to meet different installation request. Automatic turns on and off when water rise down.

contact us
collect
SHARE THIS PRODUCT:
  • Standard accessories
  • Optional Accessories

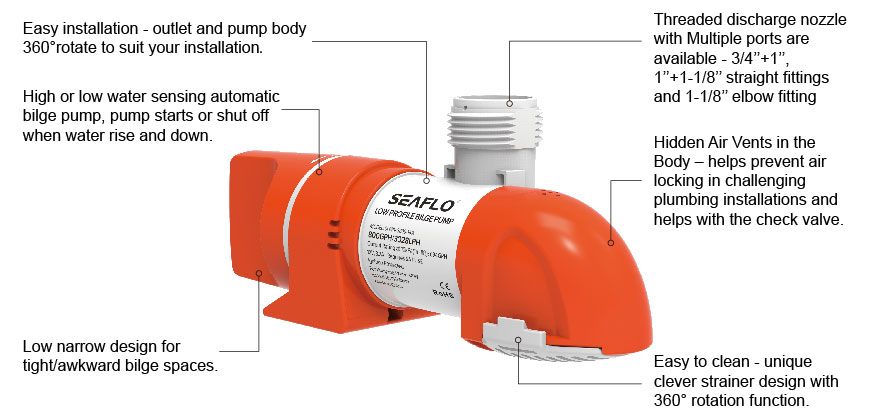

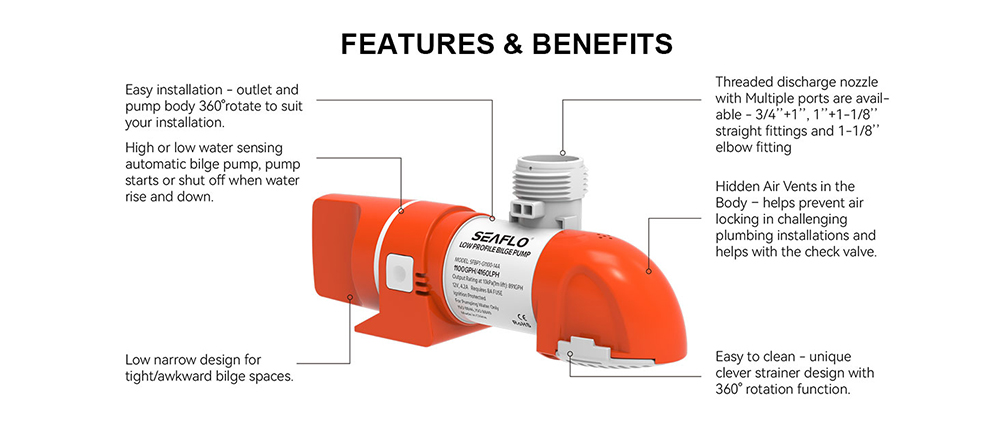

14A Features and Benefits.jpg

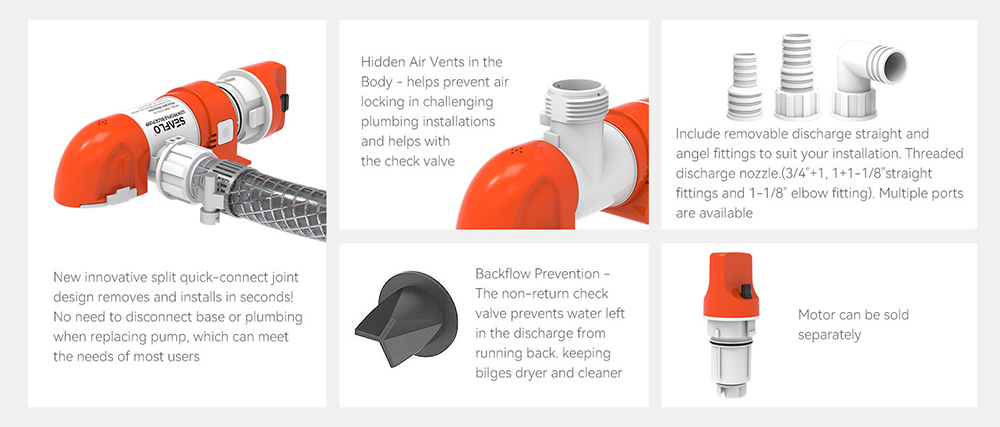

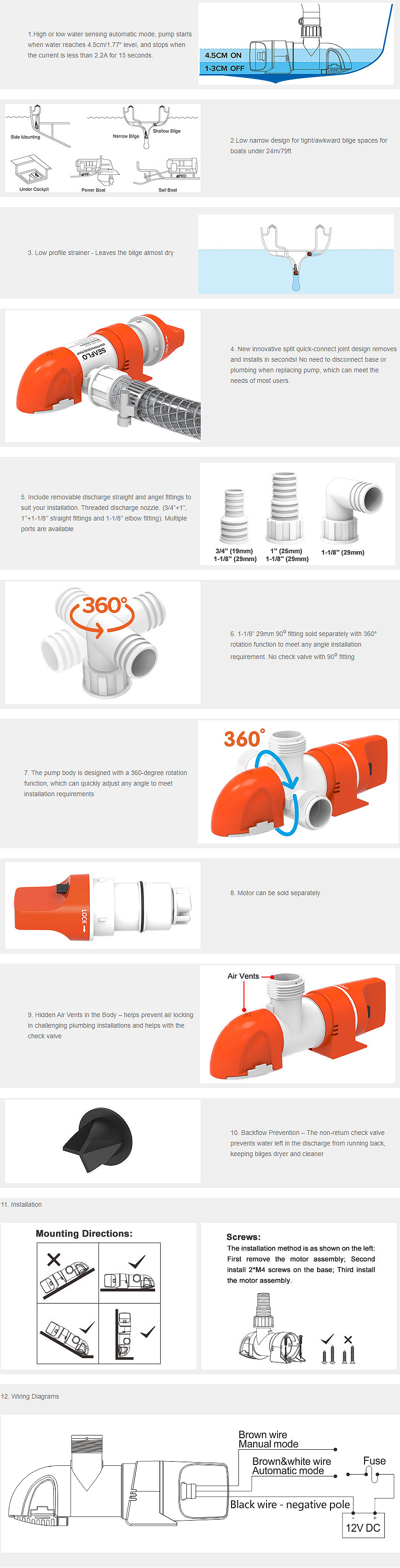

MORE FEATURES & BENEFITS

•  Low narrow design for tight/awkward bilge spaces

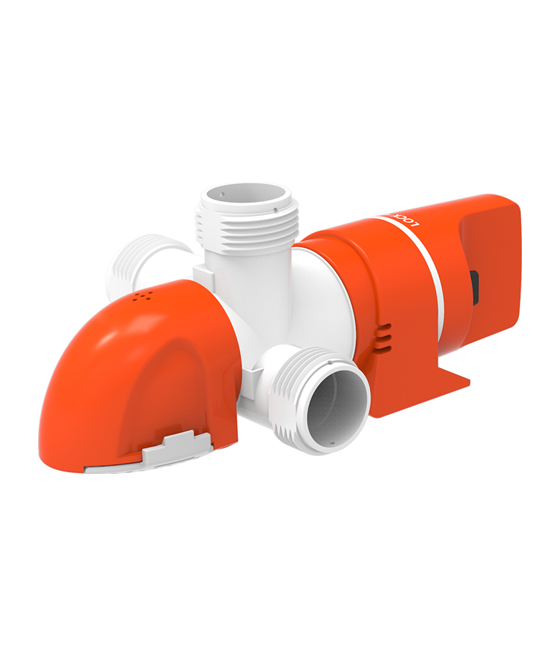

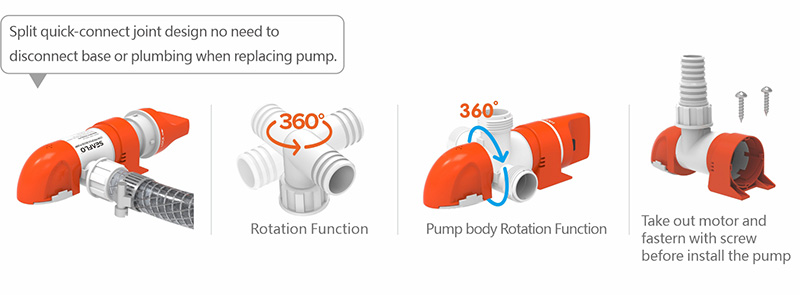

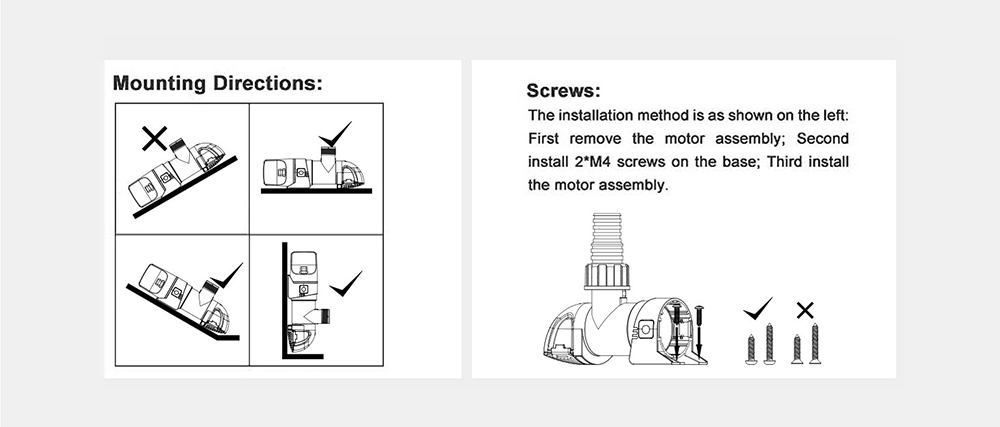

•  Easy installation - outlet and pump body 360º rotate to suit your installation

•  Efficient operation - Very low power consumption

•  Low profile strainer - Leaves the bilge almost dry

•  Easy to clean- snap fit assembly easy to remove and replace for cleaning

•  Includes check valve to prevent water back-flow

•  CE, RoHS, ISO 8846, ISO8849 standards

•  Sealed efficient, long life motors, quiet operation

•  Exclusive moisture tight seals

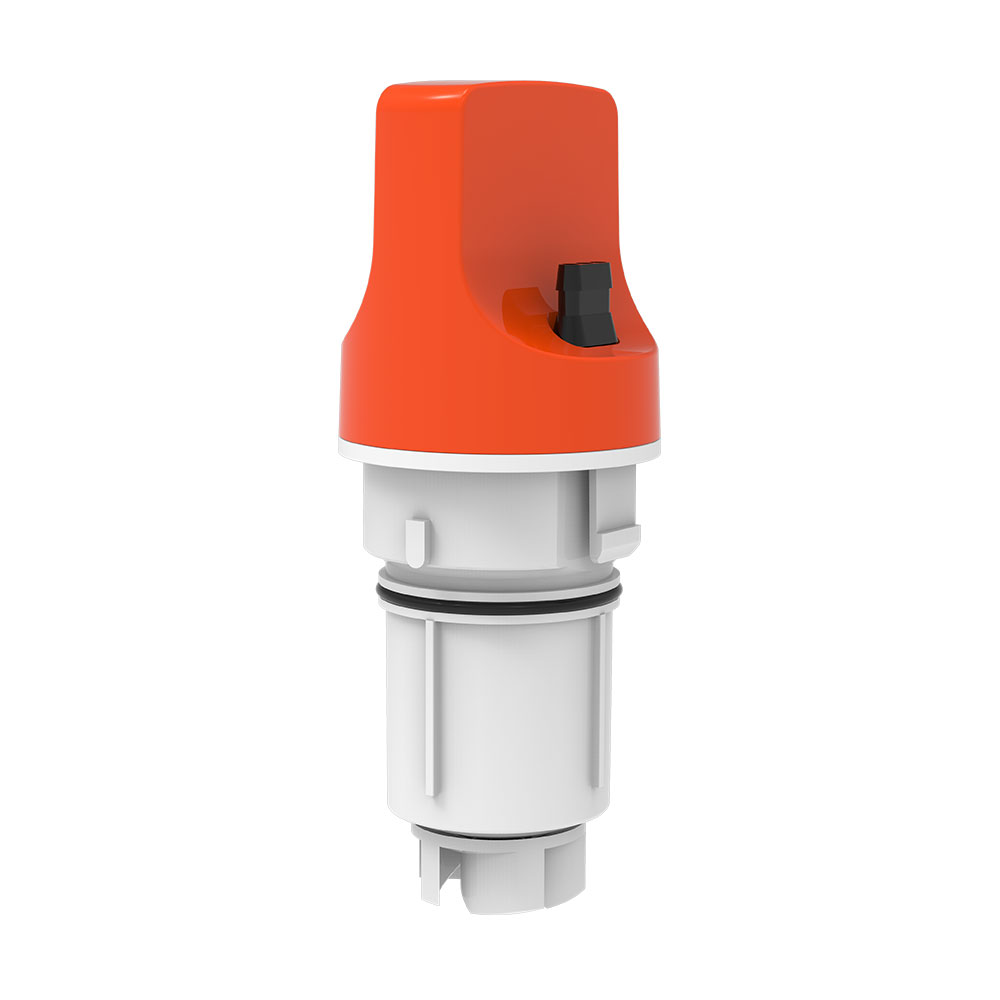

•  Motor can be sold separately

•  Marine grade silicon blocked, tin coated wiring

•  Stainless-steel motor shaft

•  Five-blade impeller to ensure high flow rate

•  Anti-Airlock protection

•  2 Year Warranty

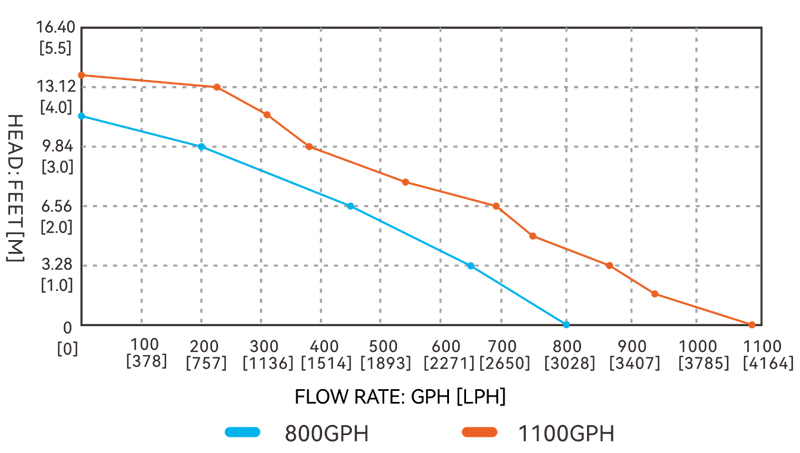

STANDARD PUMP CONFIGURATIONS

Model

Flow rate

Volts

Current

Head

Mode of   Operation

SFBP1-G800-14A

800GPH

12V

3.2A

3.2m/10.5'

automatic water level   sensor

SFBP2-G800-14A

800GPH

24V

2.0A

3.2m/10.5'

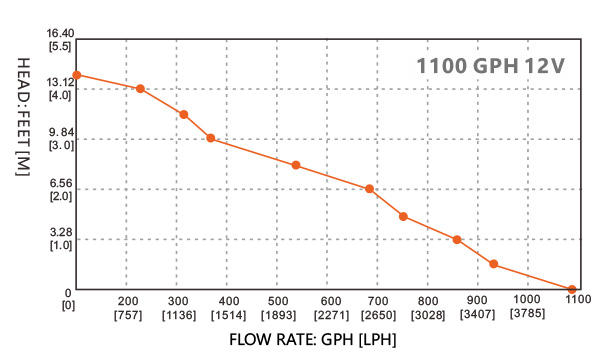

SFBP1-G1100-14A

1100GPH

12V

4.2A

4.0m/13'

SFBP2-G1100-14A

1100GPH

24V

3.0A

4.0m/13'









SHIPPING INFORMATION

Unit Weight

0.86 lbs (0.39 kg)

Selling Unit Size (L x W x H)

8.66" x 5.31" x 2.56"

(22 x 13.5 x 6.5 cm)

Selling Unit Weight

1.23 lbs (0.56 kg)

Master Carton Size (L x W x H)

22.05" x 17.72" x 11.22"

(56 x 45 x 28.5 cm)

Master Carton Qty

32 pcs

Master Carton Weight

43 lbs (19.5 kg)

Master Carton Volume

0.072 m³
