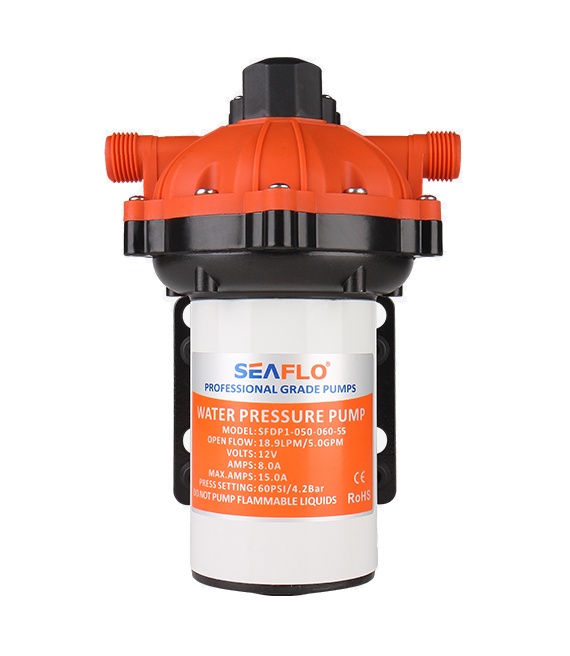

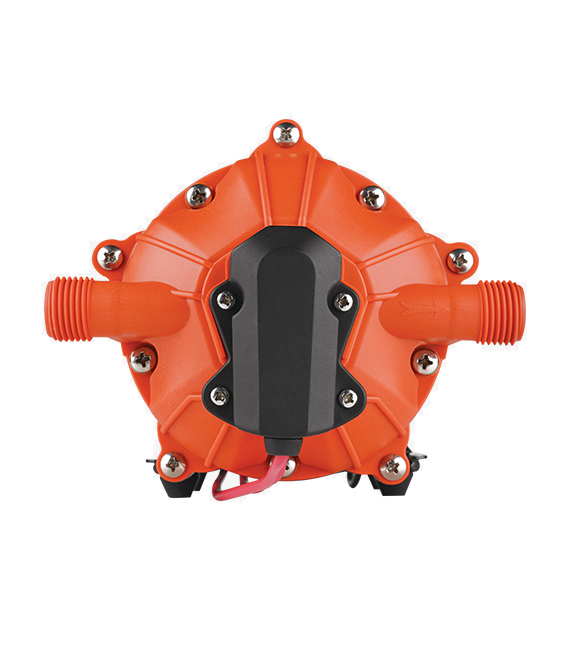

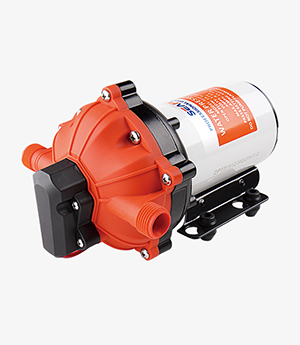

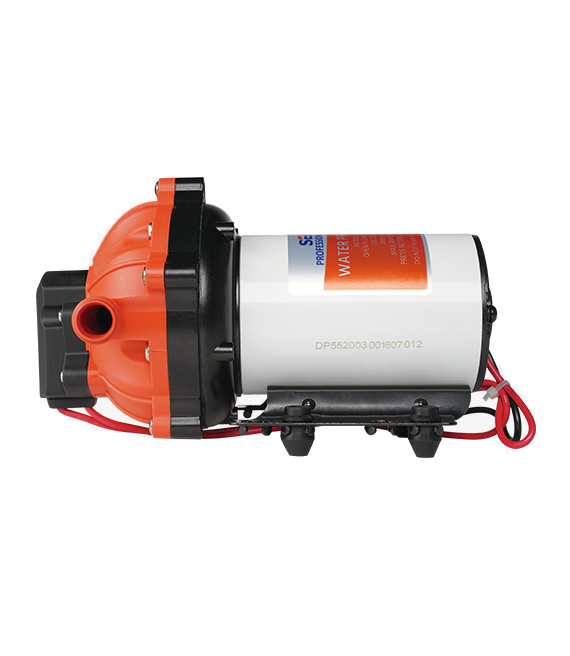

55 Series Automatic Demand Diaphragm Pump

diaphragm pump,12v water pump ,washdown pump

Voltage:12V/24V/115V/220V

Open Flow:4.0-5.0GPM / 15.0-18.9LPM

Shut-off Pressure:60PSI / 4.2BAR

Priming Capabilities:6 feet (1.8 m) suction lift

Max Recommended Temperature:140° F (60° C)Max.

Material:EPDM(Valves) / Santoprene(Diaphragm)

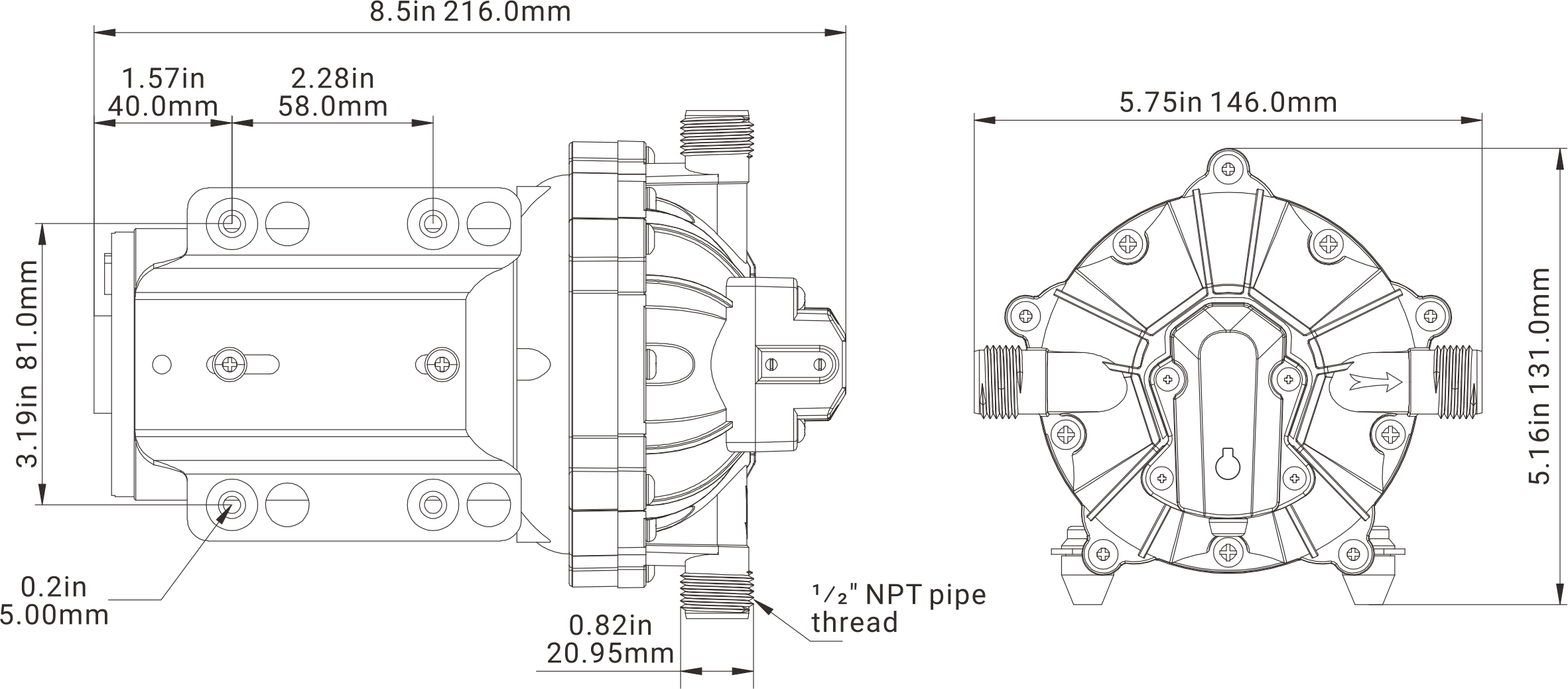

Ports:1/2"-14 MNPT

An economical workhorse, the 55 series are engineered for flexibility. The 5 chamber series are our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. With on-demand switch, 3.0 to 5.0 GPM, and 70 PSI, new demand switch, control of pressure precise, stable performance, low starting pressure, good heat dissipation, the 55 series will meet your special requirements with positive predictable performance. With built-in bypass function, 55 series is able to reduce rapid cycling and allow water to flow back from the outside to the inlet side of the pump. SEAFLO also offers a variety of easy connect fittings and filters.

contact us
collect
SHARE THIS PRODUCT:

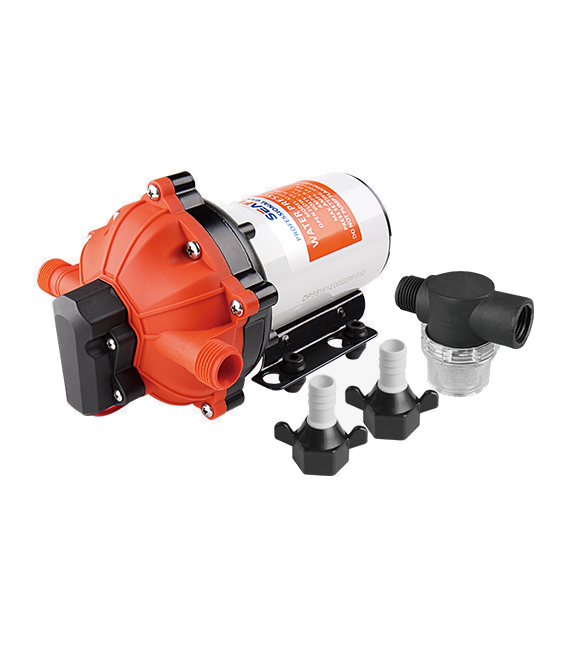

  • Standard accessories
  • Optional Accessories

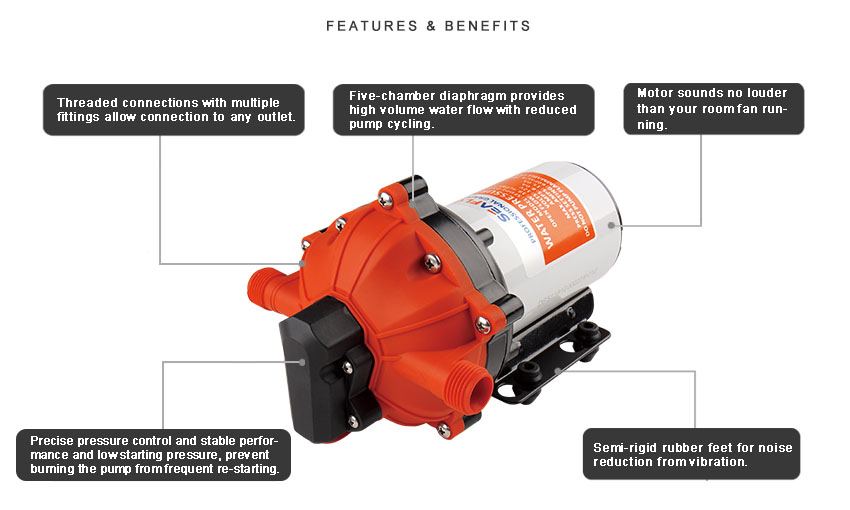

MORE FEATURES & BENEFITS

•  Precise pressure control and stable performance

•  Good sealing performance, waterproof and dustproof

•  Low starting pressure, reduces cycling

•  Good heat dissipation

•  Longer pump life

•  Can supply up to 4 fixtures

•  Run dry capable for normal workloads

•  Very quiet operation

•  On-demand combine with by-pass

•  Fresh water or salt water available

•  16 AWG, 9"(22.8 cm) long Leads

•  2 Year Warranty

•  Meets or exceeds RoHS, SGS, and ISO standards


STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow
(GPM/LPM)

Max Draw

Shut-off Pressure
(PSI/BAR)

SFDP1-040-060-5512V4.0 / 15.011.0A60 / 4.2
SFDP2-040-060-5524V4.0 / 15.06.0A60 / 4.2
SFDP1-050-060-5512V5.0 / 18.915.0A60 / 4.2
SFDP2-050-060-5524V5.0 / 18.98.0A60 / 4.2
SFDPA1-050-060-55115V5.0 / 18.92.56A60 / 4.2
SFDPA2-050-060-55220V5.0 / 18.91.28A60 / 4.2



SHIPPING INFORMATION

Unit Weight

6.08 lbs (2.76 kg)

Selling Unit Size (L x W x H)

11.1" x 6.18" x 5.35"

(28.2 x 15.7 x 13.6 cm)

Selling Unit Weight

6.66 lbs (3.02 kg)

Master Carton Size (L x W x H)

19.68" x 12.08" x 12.40"

(50 x 30.7 x 31.5 cm)

Master Carton Qty

6 pcs

Master Carton Weight

40.12 lbs (18.2 kg)

Master Carton Volume

0.048 m³
