Variable Speed Pump,Frequency conversion pump，Inverter pump
Voltage：12V/24V
Open Flow：3.5GPM/5.0GPM (13.2LPM/18.9LPM)
Shut-off Pressure：70 PSI / 4.8 BAR
Priming Capabilities：1.8m
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：1/2" MNPT
Control Type：Variable Speed Technology
SEAFLO variable speed pumps are offered in 5-chamber models. These pumps allow for constant pressure across multiple outlets via integrated electronic controls. Eliminates the need for pressurized tanks and pressure switches. Our 5-chamber diaphragm and bypass technology reduces cycling and reduces noise.Demand switch, control of pressure precise, stable performance, low starting pressure, good heat dissipation that will meet your special requirements with positive predictable performance.

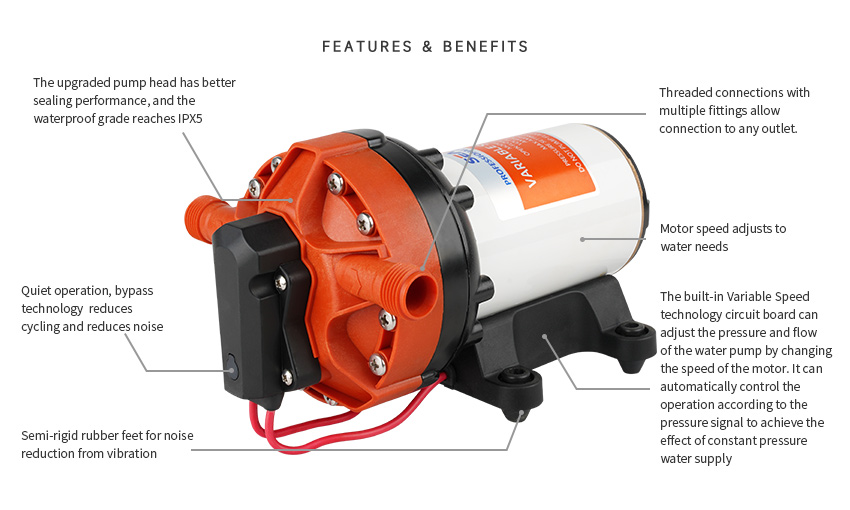

MORE FEATURES & BENEFITS
• Variable speed technology.
• Motor speed adjusts to water needs.
• Capable of sustained low voltage operation
• Run dry safe,long service life
• Strong suction, suction lift up to 1.8m
• Quiet operation,bypass technology reduces cycling
• 5-chamber diaphragm pump operates more stably and smoothly
• CE, UKCA, RoHS, REACH, PAHs
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure (PSI/BAR) |
| SFDP1-035-070-56 C | 12V | 3.5 / 13.2 | 7.5A | 70 / 4.8 |
| SFDP2-035-070-56 C | 24V | 3.5 / 13.2 | 4.0A | 70 / 4.8 |
| SFDP1-050-070-56 C | 12V | 5.0 / 18.9 | 10.0A | 70 / 4.8 |
| SFDP2-050-070-56 C | 24V | 5.0 / 18.9 | 5.5A | 70 / 4.8 |
