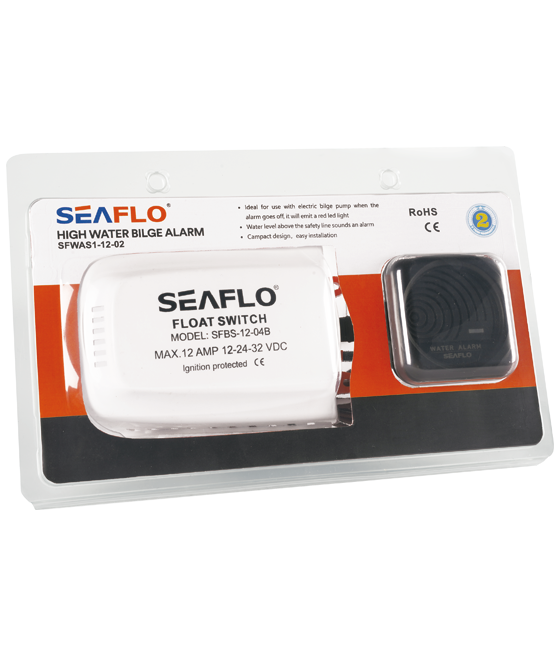

High Water Bilge Alarm

High water level alarm device, bilge pump alarm device, float switch alarm system

Voltage:12V / 24V

Amps:20A / 10A

Wire Gauge Size:16AWG (Switch) / 28AWG (Alarm)

Wire Lead:1000mm (Switch) / 150mm (Alarm)

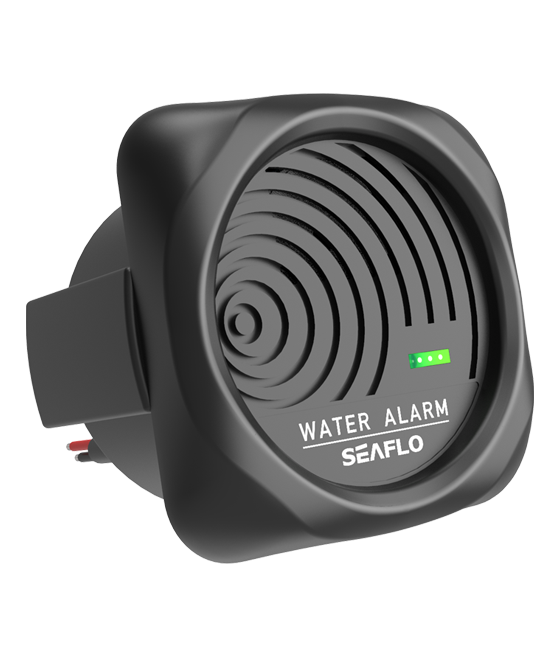

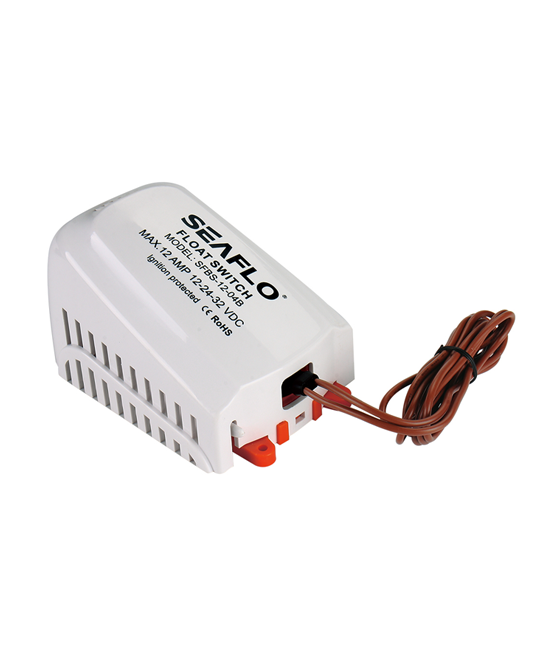

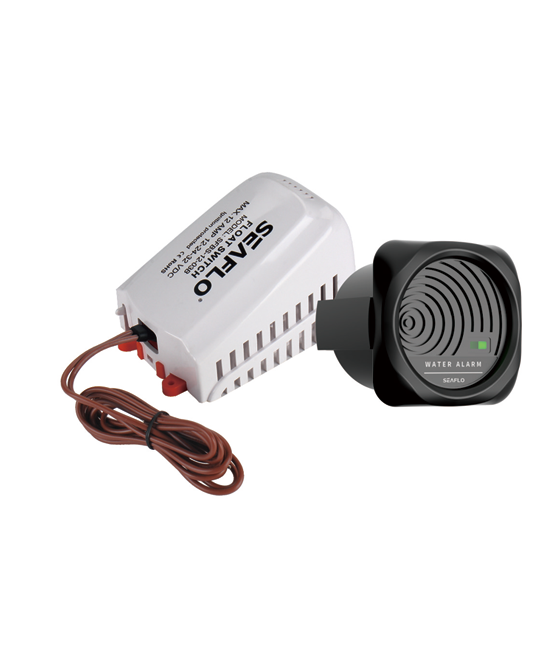

SEAFLO High Water Bilge Alarm consists of a non-mercury float switch and an in-dash gauge that features both a visual and an audible 95 db alarm. This unit allows an unmanned com part ment to be constantly monitored. For additional compartments add additional SEAFLO Float Switches. Use with SFBS-12-04B float switch, or applications in other places.

contact us
collect
SHARE THIS PRODUCT:
  • Standard accessories
  • Optional Accessories

FEATURES & BENEFITS

•  A safety reminder device integrating vision and hearing.

•  Consists of a float switch and a 95 DB alarm.

•  Allows an unarmed compartment to be constantly monitored.

•  Rated to handle pumps up to 20A at 12V or 10A at 24V.

•  Turn on when water level higher than 45-55mm(1.77"-1.97").

•  Turn off when water level lower than 20-25mm(0.79"-0.98").

•  The float switch comes with a filter housing to keep debris out.

•  2-year global warranty


STANDARD CONFIGURATIONS

Model Number

Voltage

Current

Alarm volume

N.W.

Wire Gauge Size   /length

SFWAS1-20-02

12V DC

20 Amps.Max

≥95DB

0.3KG

16AWG/1000mm   (Switch)

  28AWG/150mm   (Alarm)

SFWAS2-10-02

24V DC

10 Amps.Max

≥95DB

0.3KG


High Water Bilge Alarm.jpg


High Water Bilge Alarm2.jpg



SHIPPING INFORMATION


Selling Unit Size (L x W x H)

10.62" x3.81" x 2.51"
(27.00 x 9.70 x 6.40 cm)

Selling Unit Weight

0.90 lbs (0.41 kg)

Master Carton Size (L x W x H)

24.21" x 10.43" x 23.22"
(61.50 x 26.50 x 59 cm)

Master Carton Qty

28  pcs

Master Carton Weight

25.35 lbs (11.50 kg)

Master Carton Volume

0.083 m³
