Four Way Inlet Water Solenoid Valve，4-Way Solenoid Valve
Voltage：12V / 24V
Outlet Dia：5/16"(8mm)
Application Scenarios：Marine，yacht

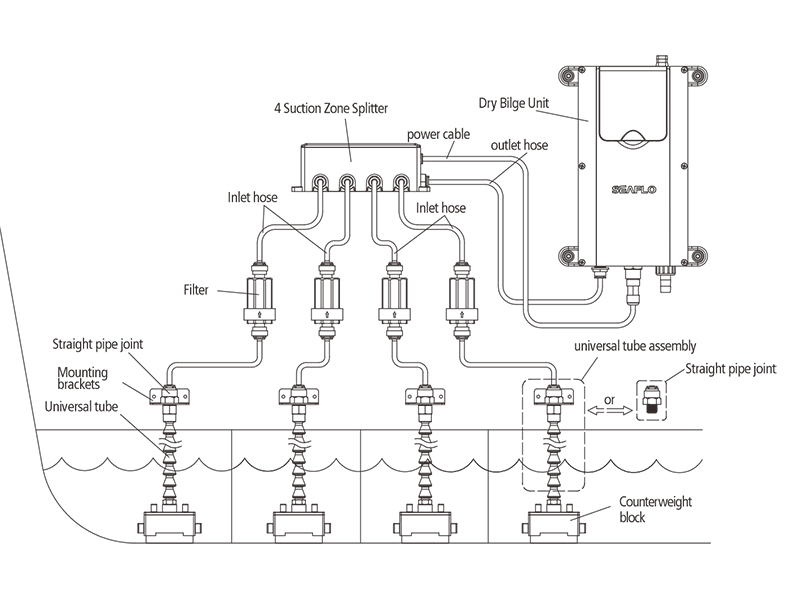

SEAFLO Four outlets solenoid valve use with the Dry Bilge System to keep bilges clean and dry.The valve has 4 inlet and 1 outlets.
FEATURES & BENEFITS
• Use with the SEAFLO Dry Bilge System to keep bilges clean and dry
• The valve has 4 inlet and 1 outlets

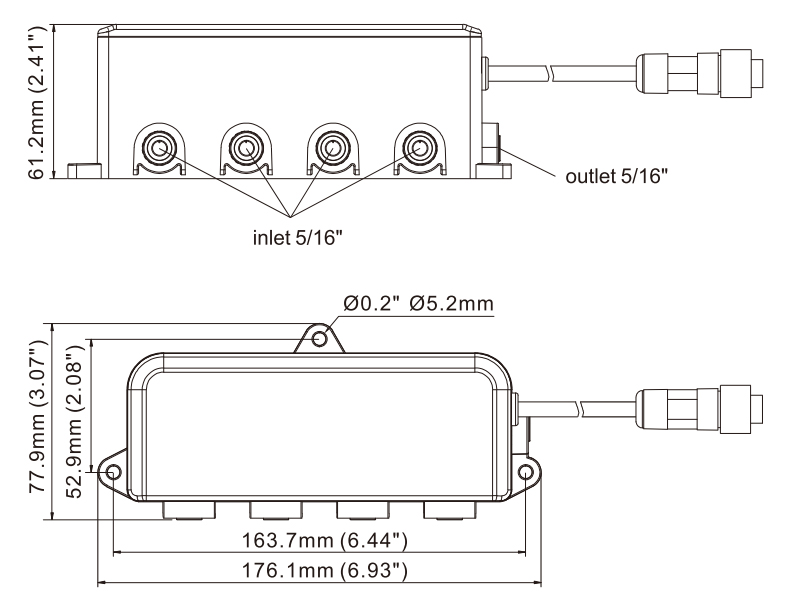

• Water inlet port and outlet port diameter are 5/16"(8mm)
• High absorption suction base ensures a dry bilge
• Quick-connect fittings allow for simple plumbing installation
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Power | Pressure |
SFSV1-02A | 12V | 10W | 1-150PSI |
SFSV2-02A | 24V | 10W | 1-150PSI |
SHIPPING INFORMATION
Unit Weight | |
Selling Unit Size (L x W x H) | |
Selling Unit Weight | |
Master Carton Size (L x W x H) | |
Master Carton Qty | |
Master Carton Weight | |
Master Carton Volume |
